Basement Waterproofing Photo Album: Basement Waterproofing using The WaterGuard System in Shickshinny, PA

These Shickshinny, PA homeowners purchased their home 3 years ago. It was not long before they realized their basement would take on a lot of water each time it rained. Their home is built on a slope, aligned with a natural spring right above them. Not only were they getting hit with rainwater, but also overflow from the spring. After doing their research on the internet, they decided to give Liberty Basement Systems a call. Inspector Tom Badman did a walk-through of the home and explained the installation process to the homeowners. After hearing Tom's professional suggestions, they quickly decided that Liberty Basement Systems had the right solution to their problem. After jackhammering the inside perimeter of the basement walls, 132ft of WaterGuard would be installed. CleanSpace was installed on the basement walls, stopping any water that may come through to roll into the channels in the WaterGuard. Any water that enters the basement will flow directly into The WaterGuard System. The water will flow to the TripleSafe Sump Pump. An Exterior Discharge line that is attached to the pump will allow the water to be safely carried away from the home. Combining these products will ensure the homeowners basement will always stay dry!

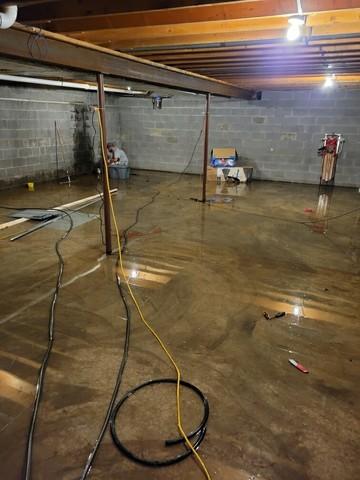

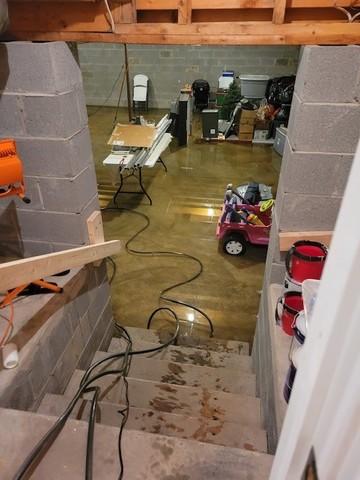

Basement Flood

This is what the customers basement looked like after a heavy rainfall.

Water Removal

With not having a waterproofing system installed, the customer would "bucket" water out into a tote. They carried the tote up the basement steps and dumped outside of their home.

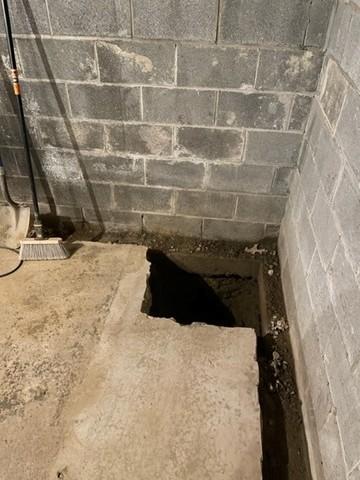

TripleSafe Sump Pump Location

The pump system will be installed in the corner of the customers basement.

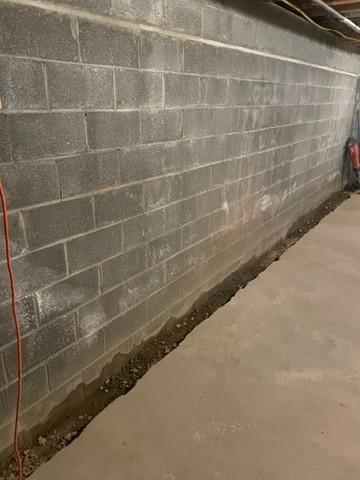

The WaterGuard System Installation Process

The WaterGuard will run in the trench around the entire basement perimeter.

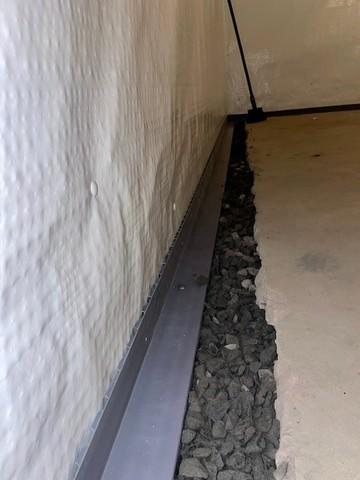

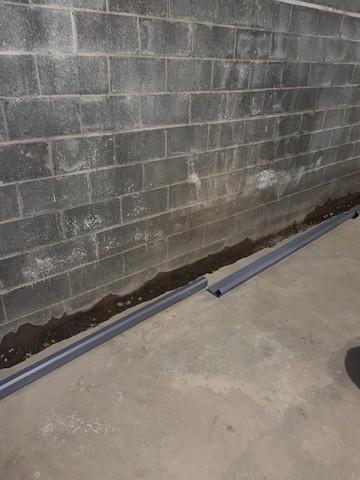

WaterGuard Placement

Along with other Basement Systems products, WaterGuard will keep their basement clean and dry so they can use the space for an additional living space.

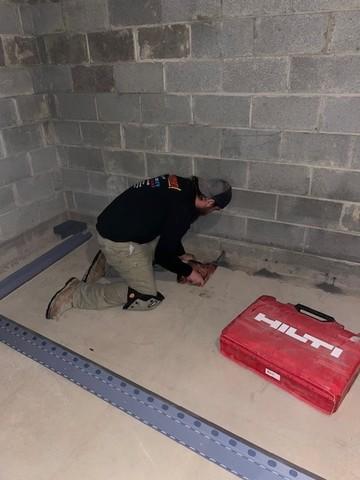

Drilling Weep Holes

John is drilling weep holes along the bottom of the wall to provide an exit path for the water that can get trapped within the wall.

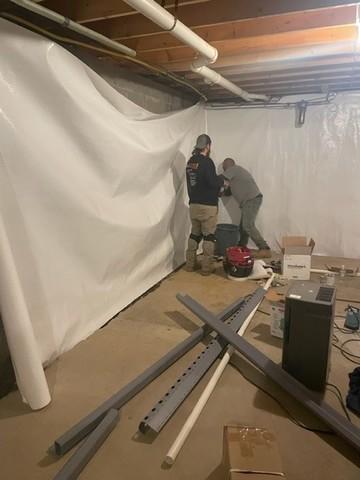

CleanSpace Wall System

The customers walls were lined with CleanSpace. This is a heavy thick liner is treated with an antimicrobial ingredient so mold and bacteria will never grow on it. It also allows the water that seeps through the walls to drain down into the WaterGuard, then to the sump location.

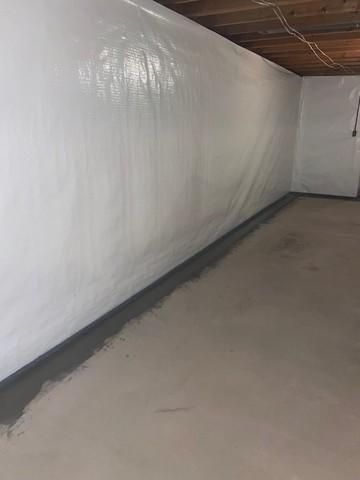

Basement System Products Combined

Walls are lined with CleanSpace and The WaterGuard System in place before cement will cover the entire perimeter.

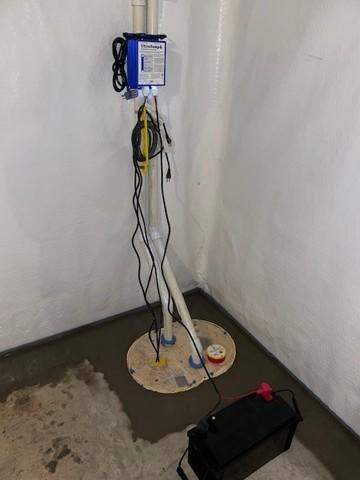

TripleSafe Sump Pump

A sump pump is a necessary element of basement waterproofing. The TripleSafe assures protection from pump failure, single pump can't handle volume in hard rain, and power failure.
